BM-LS--XX-S Shear Beam Load Cell

Payment Type: T/T,D/P
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 10 Set/Sets
Delivery Time: 45 Days

Basic Info

Model No.: BM-LS--XX-S

Transform Type: Resistance Strain

Out-Wire: 6-Wire

Output Signal Type: Digital Type

Feature: Corrosion Resistant

Production Process: Integration

Material: Metal

IP Rating: IP65

Certification: OIML

Customized: Non-Customized

Pattern: Column Cylinder Type

Additional Info

Transportation: Ocean,Air

Port: Qingdao,Shanghai

Product Description

BM-LS-××S series digital load cell (made of alloy steel) has simple bridge construction with two end fixed, center bearing load, and uses the steel ball. Its center can be automatically adjusted and returned to original position, so it has strong capacity of anti-tilting force. The load cell has the characteristics of high accuracy, easy installation and maintenance, reliable operation, etc. Its main capacities are 3t, 5t, 10t, 20t, 25t, 30t and 50t. It can be used for producing various special scales such as electrical truck scale, railway scale and hopper scale. The load cell has protection grade specified as IP68. It is used to be explosive dangerous circumstance, the explosion-proof symbol is Exia II CT6Ga; ExiaD20T85.

Our company also produces strain gauge, weighing indicator and other scale such as truck scale, platform scale and hopper scale.

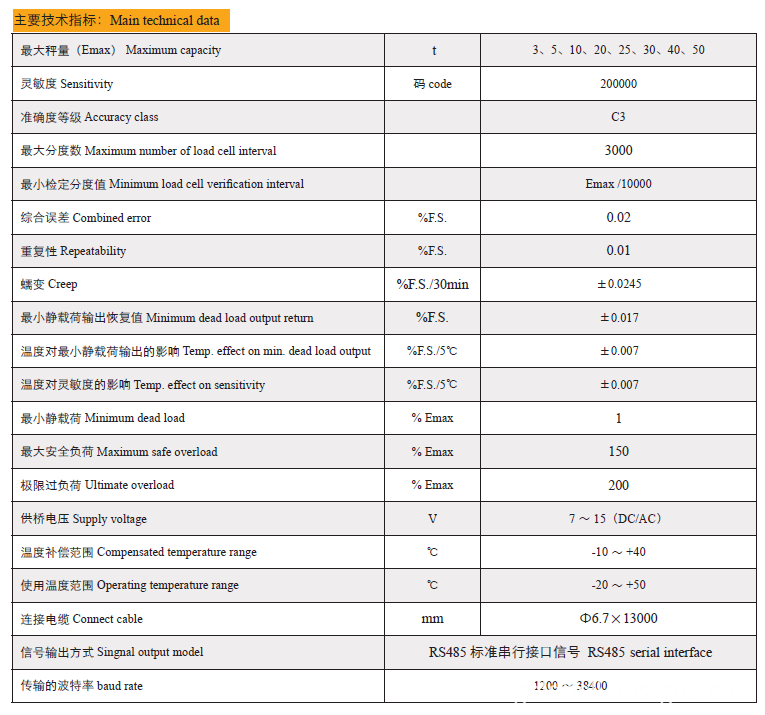

Technical Data of BM-LS-S

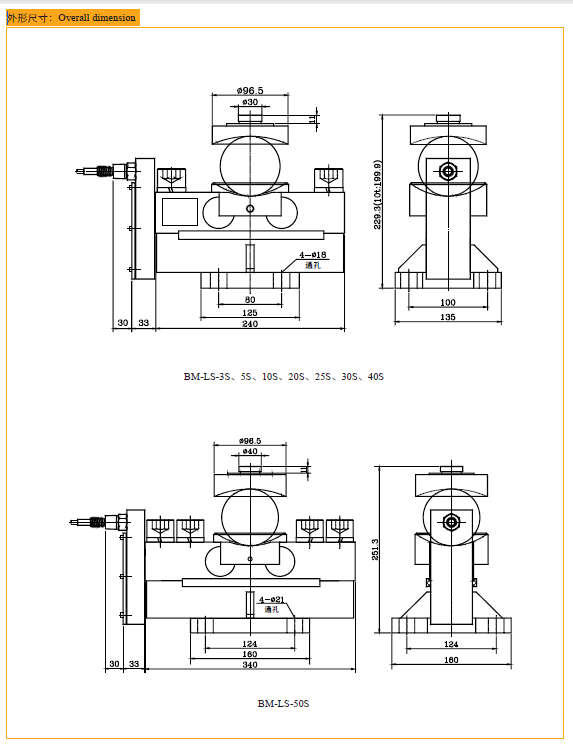

Drawing of BM-LS-XX-S
