Parallel Beam Shape Load Cell

Payment Type:	T/T,D/P
Incoterm:	FOB,CFR,CIF,EXW
Min. Order:	10 Set/Sets
Delivery Time:	45 Days

Contact Now

Basic Info

Model No.: B-XGII-××G

Additional Info

Transportation: Ocean,Air

Port: Qingdao,Shanghai

Product Description

B-XG II -××G type load cell (made of alloy steel) is double parallel beam type with small size. It has been conducted four corners adjustment, has good anti-tilting-load, easily for installation and use. It is suitable for producing platform type electronic scales with small capacity. The load cell has protection grade specified as IP67. It is able to be used in explosive dangerous circumstance, the explosion-proof symbol is Exia II CT6Ga; ExiaD20T85.

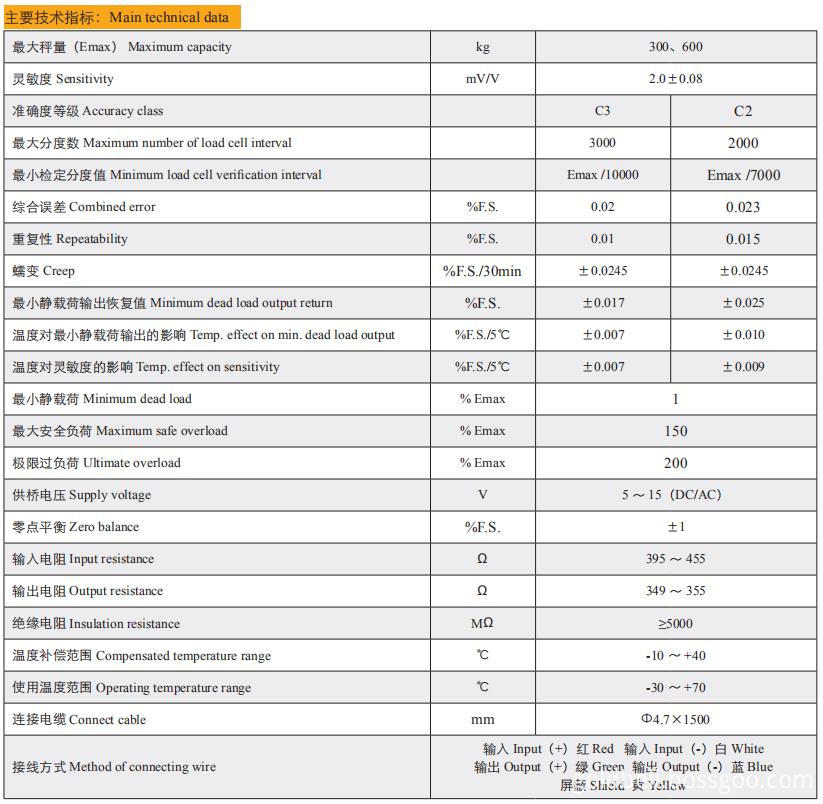

Technical Data of B-XGII-XX-G

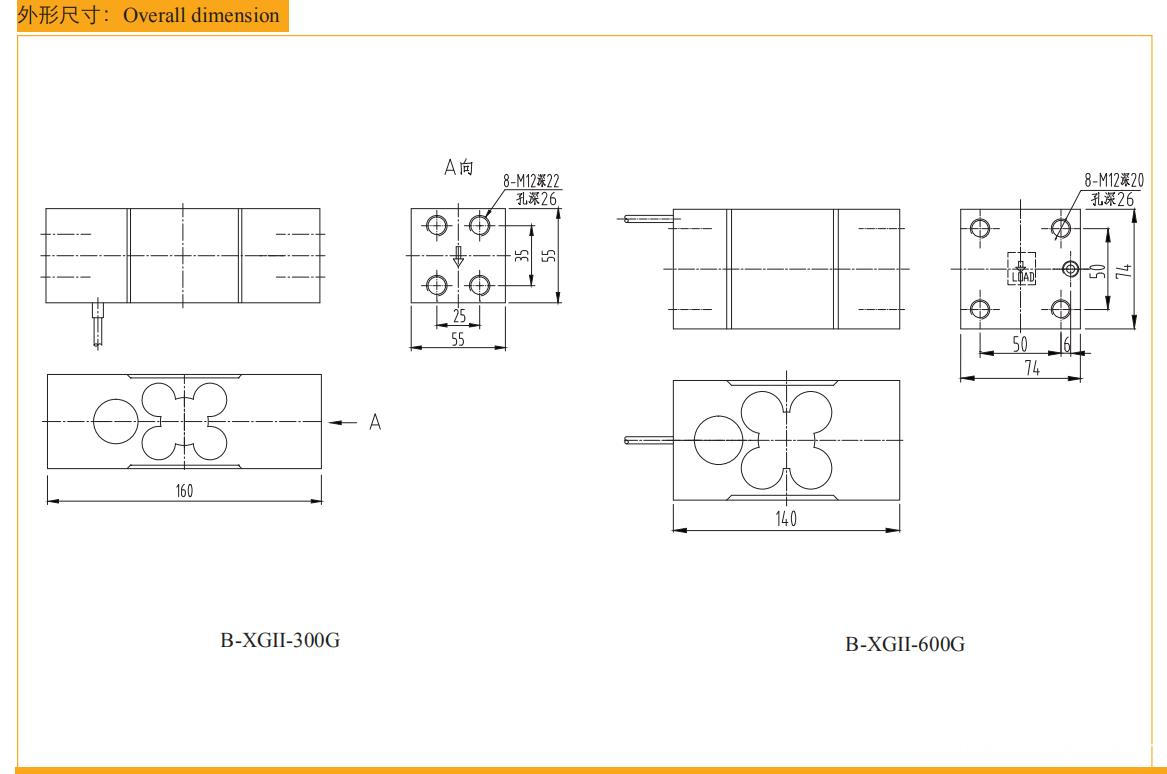

Drawing of B-XGII-XX-G
